HoloML

HoloML is a markup language for 3D web pages. A HoloML page describes a scene (3D models, a place to stand, lights, text, links, sound, and animation) in a syntax like HTML's, which you can write by hand. A HoloML-aware browser, such as HyperSpace 3D, shows the scene as a space to orbit or walk around.

HoloML is experimental. It has one renderer so far, HyperSpace 3D, and until version 1.0 a later version may change or remove what an earlier one has. What a page written for 0.1, 0.2, or 0.3 means will not change.

<holoml version="0.3">
  <head>
    <title>A red car</title>
  </head>
  <scene background="#0b0f1e">
    <viewpoint position="0 1.6 6" look-at="0 0.8 0" mode="orbit" />
    <light type="ambient" intensity="0.4" />
    <light type="directional" position="4 8 5" intensity="1.2" />
    <model src="models/coupe.glb">
      <material name="Paint" color="#c0182a" />
    </model>
    <label position="0 2.1 0">Drag to walk around the car</label>
  </scene>
</holoml>

Read

• The specification: HoloML 0.3, the language as a standard, with its grammar and the scene API.
• Tutorials: lessons that build a first page, then a first script.
• How-to guides: one task each, such as adding sound, a door that opens, or water.
• Reference: the elements, the scene API, and the codes a checker reports, at a glance.
• Explanation: why HoloML is as it is, and how a browser shows a page.

The example sites

Each is a HoloML site you can open in HyperSpace 3D, or in any browser with WebGL 2 through HyperSpace 3D's viewer on a plain page ("Open it here"; how it works), and its source is in the repository.

•

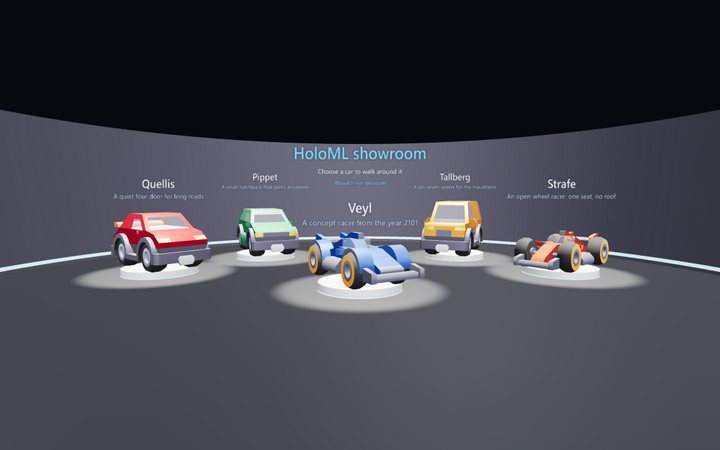

  The showroom: five cars in a round hall, one on a turntable, each to walk around in three colours. Open it here · Source.

•

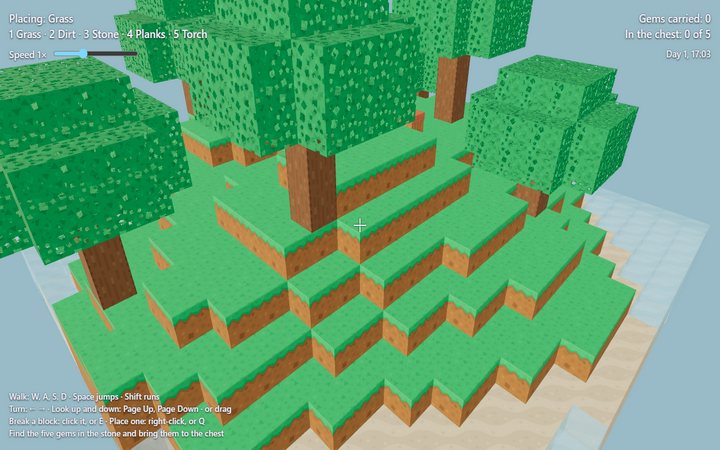

  Blockworld: a small block game, with a script, sound, day and night, and a speed slider. Open it here · Source.

•

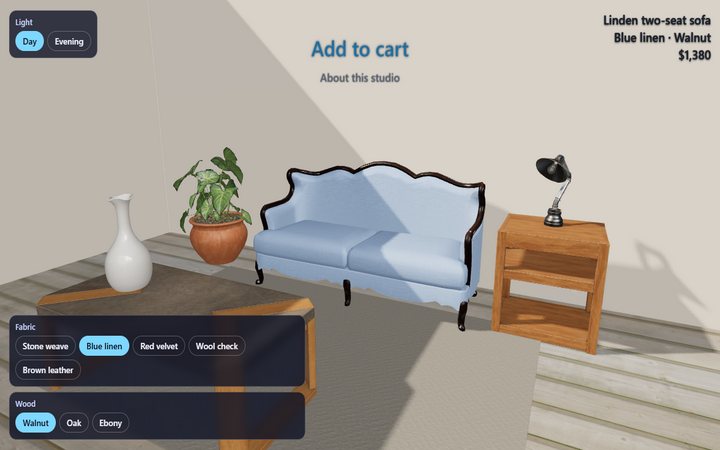

  The sofa studio: a shop page, where the sofa's fabric and wood change in place. Open it here · Source.

•

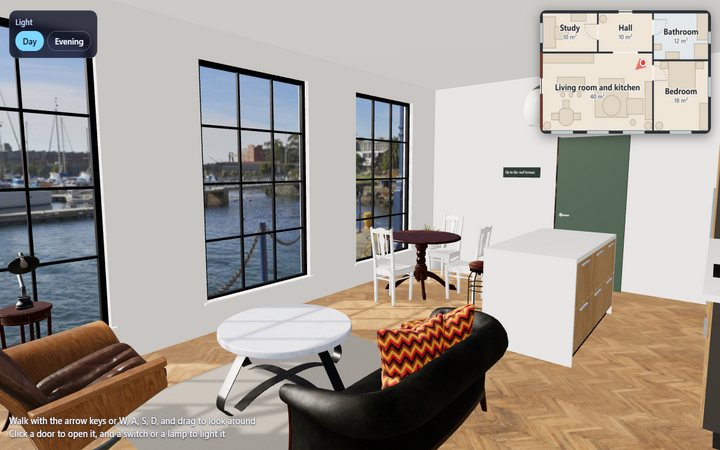

  Harbour Loft: a flat to tour, with doors and lamps to click, panels, and a floor plan. Open it here · Source.

•

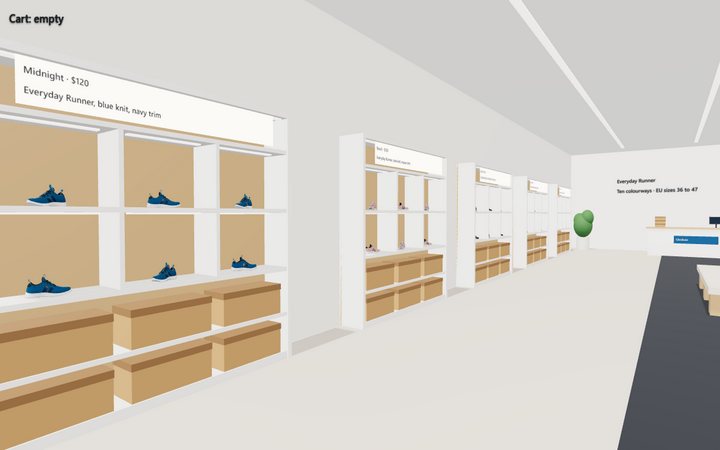

  The sneaker store: a shoe in ten colourways on shelves that load as you come near. Open it here · Source.

•

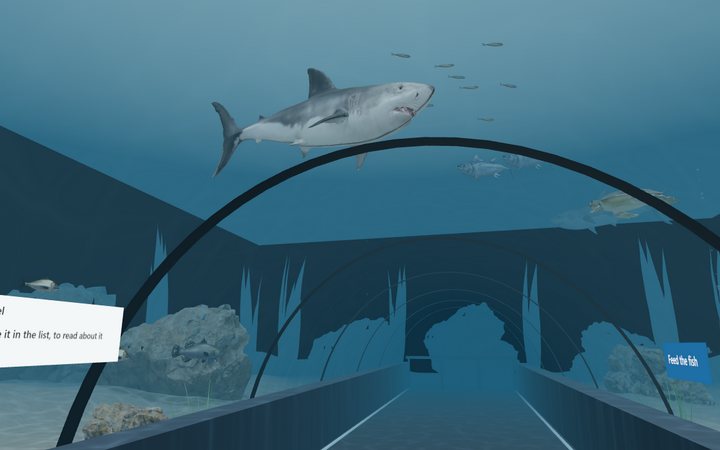

  The ocean tunnel: an aquarium to walk through, with 30 fish, water, and feeding. Open it here · Source.

•

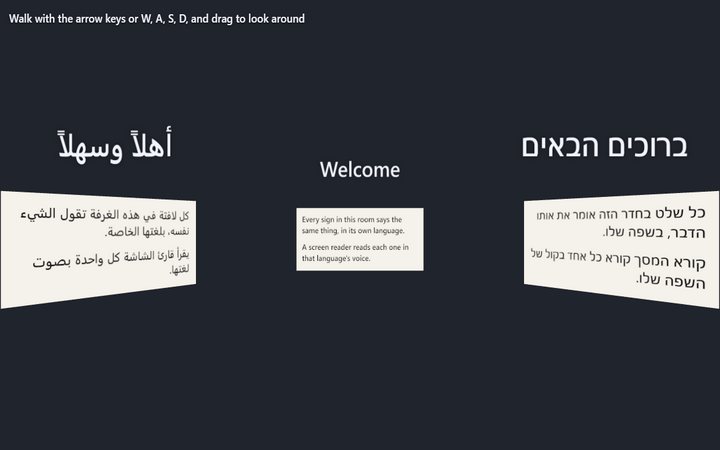

  Words in a room (0.3): welcome signs in English, Arabic, and Hebrew, each in its own language and direction. Open it here · Source.

The pictures were taken in HyperSpace 3D; the models in them are credited in each site's models/CREDITS.md.

Licences

The specification is licensed under CC BY 4.0, and the code, the tools, and these guides under Apache 2.0. The example sites' models, pictures, and sounds keep their own licences, CC0 or CC BY 4.0, as each site's credits say.
